适用范围与概况/Brief Introduction：

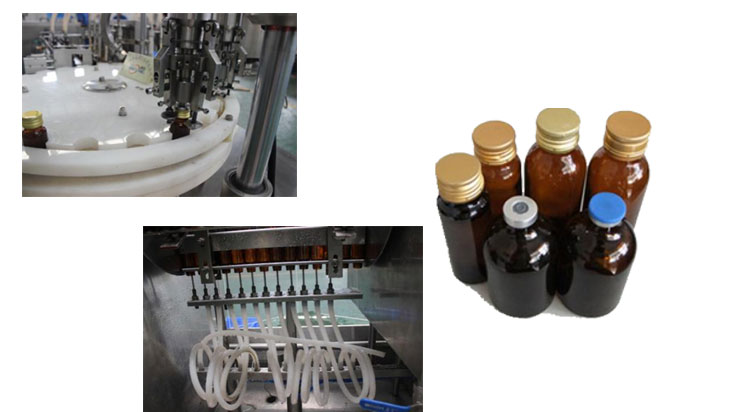

本出产线適合30ML这些口服方式液的装罐线制作方式的线出产，由供瓶机、辊筒洗瓶机、渐近线式装罐线制作方式的线轧（旋）盖机、立试标贴纸机等的设备组合，可全自行到位理瓶、洗瓶、装罐线制作方式的线、上盖、旋（轧）盖、标贴纸等制作工序。常见使用于医药化工新材料、食品厂、化工新材料的的不同介质介质的装罐线制作方式的线联调出产。本出产线非常满足GMP的标准。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特质 /Characteristic：

◆样貌才质为304不绣钢，分装前半部采316L不绣钢，具备GMP制约。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可改变多尺寸规格产出。can be situable for several bottle specs.◆正常运行不稳，低频噪音小，罐装准确 。Stable running,low noise,precise filling.◆破瓶率低，原料优秀率高，耗电少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆这件 分娩线可单机联机掌握和连琐掌握。The whole line can single machine control or interlock control.

能力参数设置/Main Technical Parameters：

不适用金桥铜业跨接线的截面积大小Filling Volume	30-150ML
分装头数Productivity	低挡4头         &nbജsp; &n🐼bsp;  稳定8头 4 ♛at low speed             high speed 8
生育的能力	低转速30-50瓶/分     高70-100瓶/分 30-50bottles/min  70-100bottles/min
罐装精度等级Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
24v电源Power Supply	220V/50Hz
工作电压Power Supply	2.5kw
生产的线总长Dimension	7500*1000*1700MM
