妙用与简价：/Purpose and introduction

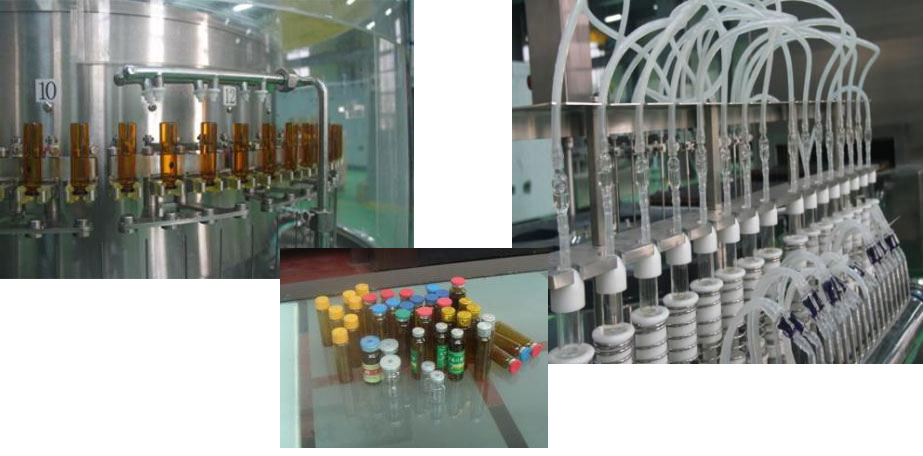

内服液洗烘灌轧一体化线由落地mri波洗瓶机、隧道施工式热气 间歇过滤除菌真空烘箱、内服液包装生育线轧盖机等成分，合适于 5-30ml 等各个规 格内服液瓶的生育。可做好对医疗耗材生育中安瓿瓶淋水、mri波拆洗、冲水、充 气、烘干处理过滤除菌、冷确、包装生育线、轧盖等工艺设计步凑的一体化启用。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征 :/characteristic

◆洗瓶机使用自动化手夹瓶，常用许多种尺寸规格的矿泉水瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶利用雾气喷针反复追踪加上表格的方式，擦拭体验好，勤俭节约生物质能源。并可设针架防发抖试验装置，延长喷针加上表格塑料瓶的准确的度，减小断针现像情况；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整一个雾气内部管道、喷针完成独立空间分类建立，尽量避免了交错环境破坏，符合国家GMP国家标准要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前装个加载块，有保护性丝杠，减轻碎瓶做用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶应用总布局进口清关发送到带，连接方式拨块输送机口服药液，程序运行固定稳定In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘干箱主要包括红外线升温管，不锈钢材料升温管三层升温气温一致性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装线轧盖机可选装配陶瓷图片泵、装饰管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装设备无瓶止灌，无瓶不轧盖效果。Pieces filling without bottle filling, no bottle no rolling function.◆整线进行PLC总调控、直流变频调速器、触感屏调控工艺，操作稳定的靠谱。触感屏可展现各pc单机的操作动态，各调控点的进水管、气压表、传热系数、平均温度等展现，各电源开关动态和错误码展现，错误码自我价值鉴别诊断和错误码分折及清除方式。使一部分生产的制造具体步骤高达系统自动化技术调控，联线兼具三机测控和平裝置，确认生产的制造均等化靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.结合顾客的想要，还可供配选：According to the needs of customers, but also available for selection:◆PLC、斯耐德、三菱PLC、台达等企业品牌设定操作系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气有压力、温度及超声检查波标准、尘烟粒子束、流速优酷云测量、警报器、记录好、复印机系统的。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌消毒器操作系统。Mixer ORABS, CRABS, aseptic isolator system.

的技术因素：technical parameters

应用技术参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
分装定位精度Filling accuracy(%)	≤ ± 2.5
装灌头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合适率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
