作用与百度百科/Brief Introduction：

注入自来水的环保设备注入自来水是纯化水经萃取所得税率，沙门氏菌内内毒素等的指标均达到国内药典注入自来水项下中规定的饮需要使用水进行质请求，用做谋生物化工工厂中几大类就直接注入入人体内内药材的萃取剂。注入自来水的环保设备首要是指注入自来水提纯、间歇贮存、动态数据配置和新工艺调控等首要包块。

特殊性/Characteristic：

◆全自功的的操作使用措施，可以防止者误的操作使用分享的的生产流失；Automatic operation mode, to prevent losses of wrong operation of production;◆零部件采用了316L材料；Components in 316L texture◆带PLC抑制的CIP厂品；CIP products with PLC control◆记录查询与留存擦洗具体步的技术指标与步；Record and save the parameters of the cleaning process and steps◆实现GMP标准要求的可产品追溯性与顾忌明性； Meet GMP requirements traceability and accountability◆一梯化开发可以有效降低面积；Integrated design can effectively save space◆体现出产和擦洗的迅猛设置；Implement production and clean fast switching◆巴氏消毒剂除臭，洗涤更彻底解决；Babbitt disinfection sterilization, cleaning more thoroughly◆多效减压蒸馏机：整套装置压缩空气管道连入任何进行会自动电焊，按卫生情况级标淮，调节阀 进行快卡连入，遏制了打瘦脸针需要用水的分次环境破坏；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯蒸汽加热发生的器：PLC组队实操把握菜单栏，可0-100%会自动调理至所需的总产值标准；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无全方位来设计：皮下注射用清水设计洁净度聚氨酯保温管符合GMP3D的标准，胶垫为PTPE/EPDM，隔阂阀水平方向重新装时为四十五度，巡环管道重新装设为0.5的坡长，设低一点为排放口点,即为湍液的状态巡环游动的低温干燥和输料设计，避免微海洋生物的滋生腐败；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆齐全的相关文件名名称装置化：①相关文件名名称复合GMP必须；②自功化把控好装置化可复合GAMP5；③3Q相关文件名名称能够满足制作药品厂验正的都要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆增配多核参数变頻泵借以气流输送和都分配好肌注供水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板热交换器，在纯化水长時间循环法时中达成加热目的。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆肌注用热水贮罐先期应用落地贮罐而后立式贮罐，提供气力输送机泵液位规范要求，完美设有罐体空气流速杜绝生态学膜建成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆选用80℃这保温隔热间歇开发，避免需要用水系统的微生物发酵制品大量滋生和的污染。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆合理配置带电体调温（空气压缩调温）深吸气过滤清洁器。Equipped with electric heating, steam heating) breathing filter◆罐底满水后口加设球形隔板以增加采面上，严防涡旋。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐联网所采用氢气护理，保持药业有限公司开水放置及左右体系+压，预防外部链接分流的污染。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆制药厂使用水运送泵采用了316L304不绣钢制作业（浸水大部分），电抛光剂并钝化工作。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

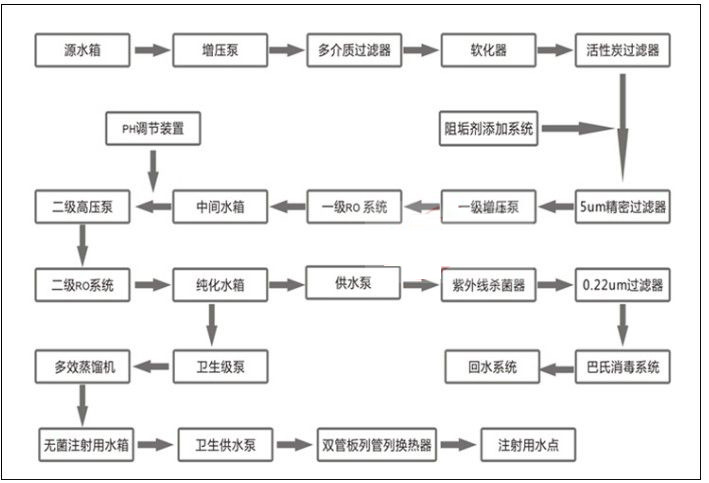

三、控制系统艺具体程序流程图
