妙用与概况/Brief Introduction：

什么是服务器用在唯一性三通接头装灌阀，常用在水剂和膏霜类护肤品的装灌，尤为对高粘度指数指数原辅材料（如浓酱、灯笼椒酱、番茄酱、种衣剂、微乳剂、悬浮物剂等）的作用较为清晰，且表面粗糙度大。什么是服务器用在PLC可程序编程把握，和6寸大显示屏屏组排界面显示仪器，履行系统全手动进瓶，系统全手动装灌，系统全手动出瓶，电器仪器，汽动元部位均用在国际联盟企业品牌，切实保障了经验丰富的的质量和经久耐用安全的性。本仪器结构的轻松，操控方面，是国外期望的专门针对高粘度指数指数原辅材料的装灌仪器。什么是服务器配置了避免漏滴问题与压模的装灌闷头，切实保障装灌结束后后无漏滴问题，无压模。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

显著特点/Characteristic：

◆操控平台——主要包括西门子PLC操控平台，罐装含量js随机数调节。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆进行对话框——6英尺彩屏手触式进行对话框，举例子简易、健康安全稳定Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆功用问题解决——下料机有防漏滴提升装置，可据材料性质兼具下潜装灌功用。（此功用可以使用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器开关元器件封装——均采用了世界企业企业，抓实设施设备的安全卫生安全、准确度性强；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆厂家安全装置——工具安全装置均适用特色304不锈不锈钢管钢板网作,如果需接触性废料就可以适用316L另交费用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆筛选法探测——即时筛选法，对事情产销量客观体现了。Counting test, real-time, intuitive reflect the yield of work.◆装罐查重——无瓶不灌、瓶数远远不够不灌Bottle filling test - no bottle no filling, not enough◆保障的情况——该设备达到GMP必须，可轻松自由拆换、洗保障。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆替换尺寸规格尺寸——换灌装生产线尺寸规格尺寸时，只需要简易优化，轻松自在玩转信用卡。Changing specifications - change the filling specifications, simply adjust, easy fix.◆安全显卡配资——显卡配资了安全眼镜框架，使服务器的操作方法生态更加的整洁安全。（此安全显卡配资是可以选择装配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

方法参数指标/technical parameters：

罐装头数The number of filling head	8头（可选装4、6、8、10、18个分装头）8 head (optional 4, 6, 8, 10,𒈔 12 filling head)

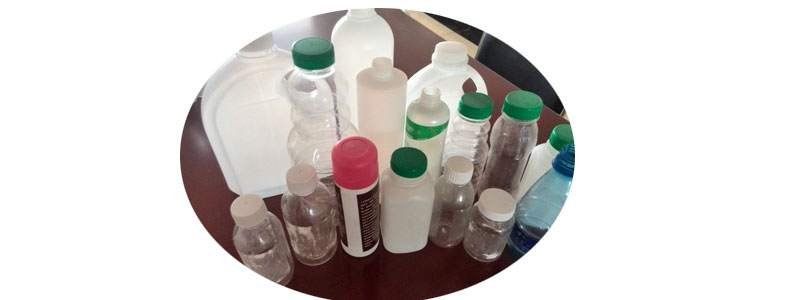

选用瓶径 Applicable bottles Drive	Ф33-Ф100 mm
量值溯源高精度measure precision	±1%
罐装余量Canned capacity	150-1000ml
制造作用Production Capacity	2400-4000瓶/分钟2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
