不同的用途与简单介绍/Brief Introduction：

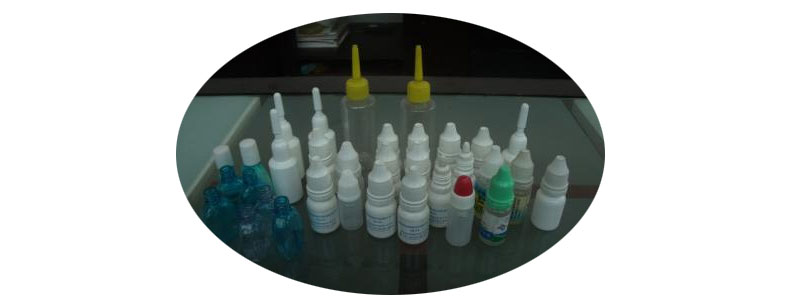

超声波焊接机适用性于2-30ML各种各样布料材质的一个圆形扁形塑料件或窗户塑料瓶的眼灵药装灌、光电子烟油等小摄入量装灌.超声波焊接机由高导致精度气缸学校精度等级学校展示精度等级等分盘地位上塞上盖;提效率气缸学校齿轮变速箱展示旋盖头的生降;恒扭距旋盖;收缩泵记量装灌;触屏屏把握.无瓶不装灌,没加内塞,外盖.具地位高精度,齿轮变速箱稳步,保护措施瓶盖子,记量准.实际操作简便等长处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特殊性/Characteristic：

◆微我的电脑控制在、装量精确度、操作步骤简单。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱电机转速可来无极变速交流变频控速。the mainframe running speed is stepless frequency conversion.◆产油量量手动参考值保持。the product quantity can be controlled. ◆多类错误码温馨提示工作(如低标准气压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自行停止时功能性，对同一个道轨突然出现连续式无灌装线、无内塞问题可自行停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术设备参数表/Main Technical Parameters：

适于规格尺寸Filling Volume	2-30ml
出产量力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装灌控制精度Filling Precision	≤±1%
电源线 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
会自动上塞率Stoppering rate	≥99%
源Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
POS机重量Weight	550 kg
造型寸尺Dimension	1800*1000*1500mm
