领域与概况/ Brief Introduction：

本工作线由全自动流水线的理瓶机、滚轴式洗瓶机、灭菌方法非常干燥机、眼麻醉药分装旋盖机、直列V型标贴空气能热泵机组成，可完成理瓶、水、气的洗掉、干燥及老化灭菌、分装、加塞、旋盖、标贴等工艺技术，注意食用于眼麻醉药还有其他小的用药量悬浊液的联线工作，也可手机单机独自食用。完成具有GMP追求。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

优点/Characteristic：

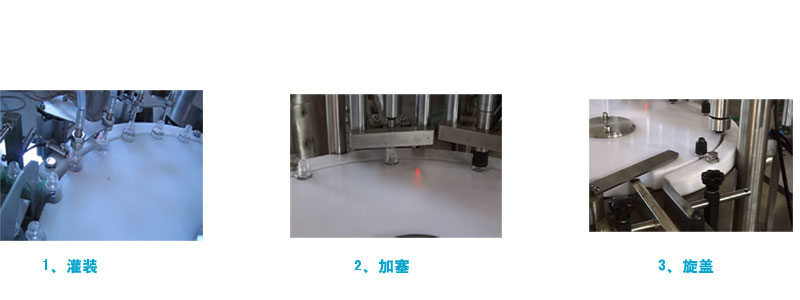

该机组设计构思型式合理的，运作安稳、罐装要求高，具国产携手共进业较为先进总体水平。是非常符合GMP规范。     眼麻醉药包装旋盖机也是我大公司的第三个代食品，组队程序界面掌握，儒动泵包装，由负压吸机械设备手替换液压泵更快的打塞，可以保障了热稳定性处理性和良好率率。用恒扭力旋盖，兼具无瓶不包装、无塞不上盖，无瓶无塞可自功宕机的工作。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技巧性能/technical parameters：

适宜尺寸规格/Bottle size	10-20ml
研发功能/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
需要用水压为/ Hydraulic Pressure Mpa	0.3Mpa
用清排水量 /water consumption	0.5 m3/h
净化后的再压缩热空气学习压力 /Clean compressed air pressure	0.6-0.8Mpa
清洁缩小气氛水量/Clean compressed air consumption	300 L/min
电源线/Voltage	380V/50Hz
瓦数/Power	5.5 kw
制造线总长/Dimension	11000*1500*1900mm
