应用与简洁：Purpose and introduction

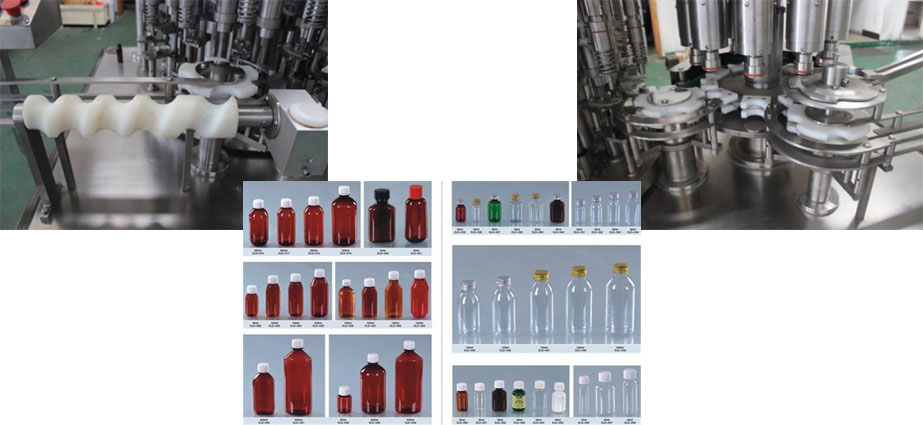

该装备适合于对30-500ML类别有机玻璃酒瓶、可pp塑料饮料瓶的罐装粘口。运用往来账户结交式汽缸做罐装，电磁炉震荡送盖，就行轧盖(金属材质式)或旋盖(可pp塑料盖)粘口，就行和前后的的研发制造工艺技术装备连结主成研发制造线，前者就行的选择百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

基本特征：characteristic

装量确切，杜尽漏滴。缺瓶不包装。 变频柜变频调速。 会去主动体现 筛选功用。 裸机均按GMP耍求制作。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技巧主要参数/technical parameters：

型号 model	NQGX30-500
采用尺寸Cutting dimension	30-500ml
产于水平Production capacity	80-200瓶/分（罐/15分钟）80-200 bottles/min (cans/min)
灌装设备控制精度 Filling accuracy	≤±1%
主机电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械设备制造总重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
